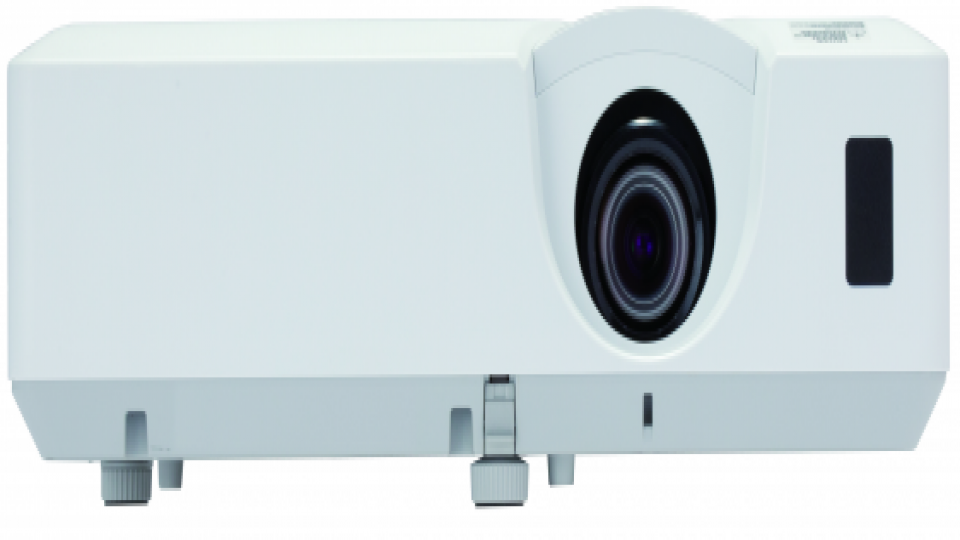

CP-EW302N

Full Specifications

Optical

  • Display Device - 0.59 inch (15mm) P-Si TFT x 3

  • Resolution - WXGA (1280 x 800)

  • Brightness - 3000 ANSI Lumens (Normal), 2400 ANSI Lumens (Eco), 2010 ANSI Lumens (Eco-2)

  • Contrast Ratio - 2000:1

  • Built-in Lens - Manual Zoom x 1.2, Manual Focus, f = 19 - 23mm

  • Lamp Wattage - 225W

  • Lamp Life - 5000 Hours (Normal) / 10000 Hours (Eco-2)

  • Diagonal display size - 30~300 inches (60 inches at 1.9m wide)

  • Distance to width ratio - 1.5 (Wide), 1.8 (Tele)

  • Focus Distance - 0.9-9.6 m (WIDE), 1.1-11.5 (TELE)

Compatibility

  • Computer - IBM Compatibility VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+,UXGA (compressed), MAC 16

  • Composite Video - NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

  • Component Video - 525i, 480i, 525p, 480p, 625i, 576i, 1125p, 1080p @ 50 / 60

  • HDMI - 525i, 480i, 525p, 480p, 625i, 576i, 1125p, 1080p @ 50 / 60

  • Plug & Play - DDC2B

Connections

  • Digital input - 1 x HDMI (HDCP compatible)

  • Computer Input - 15-pin Mini-D-sub x 2

  • Video Input - 1 x RCA composite

  • Video Output - 15-pin mini D-sub x 1

  • Audio Input - 3.5mm stereo mini connector x 2, 1 x pair RCA (L/R)

  • Audio Output - 3.5mm Stereo Mini Connector x 1

  • Control - 1 x 9-pin for RS-232C control

  • USB - 1 x USB Type B (for mouse control)

  • Wired network - 1 x RJ-45

Features

  • Keystone correction - Vertical: ± 30 degrees

  • Features - Aspect selection (video, data, HDMI) equalizing digital gamma correction, equalizing colour temperature adjustment, 2-3 pull down for NTSC, Mirror Reverse image, up-side down image, progressive scan, noise reduction, overscan, MyScreen, My Memory, MyButton (by remote control), MyText, MySource, picture modes (normal, cinema, dynamic, blackboard, whiteboard, greenboard, daytime, photo), source naming (English), resolution setting, fi lter timer, Stand-by Audio, template, Closed Caption (for NTSC & component 480i only), framelock, Eco Mode (Normal, Eco 1 & 2), ImageCare™, Direct on, Auto off

Network

  • AMX Device Discovery, Command control via the network, confi guring and controlling the projector via a web browser, controlling the projector via scheduling, Crestron RoomView®, failure and warning alerts via email, Network Bridge, PJLink™

  • Security - Security bar, PIN-lock, MyScreen password, key lock (key pad and remote control), Kensington slot, My Text password

  • OSD Languages - English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplifi ed Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese

Power

  • Power Requirements - AC 100 - 120 V / AC 220 - 240 V (50 / 60 Hz)

  • Power Consumption - 0.5 W at saving mode

Physical

  • Dimensions (W X H X D) - 320 x 85 x 245mm (excluding feet and extrusions)

  • Weight - 3.0Kg

  • Noise Level - 37db (Normal), 32db (ECO-1), 29DB (ECO-2)

  • Air Filter - Unwoven

Accessories Supplied

  • Accessories Supplied - Remote control with batteries (HL03031), Power cord (EU): 1.8m x 1, Power cord (US): 4.5m, Computer Cable (2 m) x 1, IR Remote Control Unit x 1, "AA" Batteries x 2, User’s Manual CD (Operating Guide, Network Function, User’s Manual (Concise) x 1

Optional Accessories

  • Replacement lamp - DT01481
