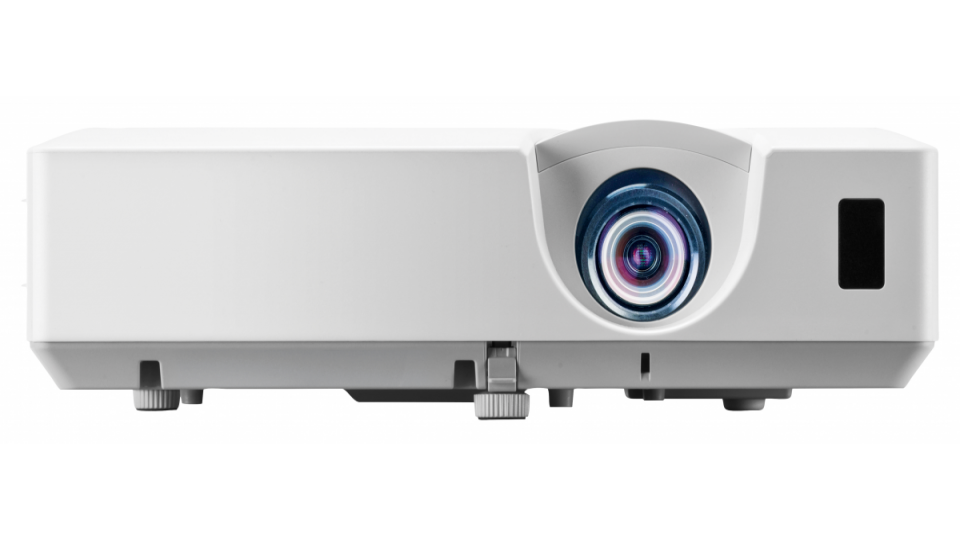

CP-EX302N

Optical

• LCD Panel - 0.63 inch 3LCD Panel

• Resolution - XGA (1024 x 768)

• Brightness - 3200 ANSI Lumens (Normal) / 2624 ANSI Lumens (Eco 1) / 2144 ANSI Lumens (Eco2)

• Colour light output (colour brightness) - 3200 ANSI Lumens (Normal), 2624 ANSI (ECO1), 2144 ANSI (ECO2)

• Contrast Ratio - 2000:1

• Lamp Life (Hours) - 5,000 hours (Normal) / 10,000 hours (Eco-2)

• Lens - Manual Zoom x1.2, Manual Focus

• Focus Distance - 0.9m ~ 9.1m (Wide), 1.0m ~ 10.9m (Tele)

• Distance to width ratio - 1.5 (Wide), 1.8 (Tele)

• Display Size - 30"~300"

• Number of colours - 16.7 million colours

Compatibility

• Computer compatibility - IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"

• Composite - NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• Component Video - 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

• HDMI - 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

• Plug & Play - DDC2B (VESA) for Computer in1 DDC2B (VESA) for HDMI

Features

• Speakers - 16w Mono

• Digital Keystone Correction - Vertical ±30 degrees

• Picture Modes - Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, Photo

Basic Features

• ASPECT selection for data Normal / 4:3 / 16:9 / 16:10, for HDMI Normal / 4:3 / 16:9 / 16:10 / 14:9, for Video 4:3 / 16:9 / 14:9, Audio pass through, Audio ports assign, Audio out (standby) and monitor out / selectable source with MENU, Auto eco mode, Auto power off, Auto signal search; direct power on; equalizing colour temperature adjustment, Equalizing digital gamma correction; frame lock (data signal with vertical frequency of 49 to 51 Hz, 59 to 61 Hz), Image blank by RS232C/Remote control, LED lamps (power, lamp, temp), Magnify 4 times (XGA) by RS232C / remote control, Mirror reverse image, Up-side down Image, MyButton by remote control, MyMemory, MySource, MyText, MyScreen, Overscan (video, component video signal), Picture freeze by RS-232C / remote control; serial number displayed on EASY MENU and on the side of projector. Source naming (in English), Stand-by audio

Network (LAN only)

• AMX device discovery, Command control via the network, Confi guring and controlling the projector via a web browser, Controlling the projector via scheduling, Crestron RoomView®, Failure and warning alerts via e-mail, Network bridge, PJLinkTM

Security

• PIN security lock, MyScreen password lock, MyText password lock, Key lock (key pad, remote control)

• OSD Languages - 33

Connections

• Digital input - HDMI x 1

• Analog Input - 15-pin Mini D-sub x 2, RCA jack x 1

• Monitor Output - 15 pin D-Sub shrink x 1

• Audio Input - 3.5 mm stereo mini jack x 2 RCA jack(L/R) x 1

• Audio output - RCA jack(L, R) x1

• Wireless LAN (Adapter not included) / Wired LAN - no / RJ45

• USB Type A - No

• USB Type B - Used for remote control mouse

Power

• Power Supply - AC 100 - 120 V / AC 220 - 240 V (50/60 Hz)

• Power Consumption/Standby - AC 220 - 240 V / 330 - 310 W / <0.5 W

Physical

• Weight - 3Kg

• Dimensions (W X H X D) - 320 x 85 x 245 mm

• Noise Level - 37 db (Normal), 32db (ECO-1), 29db (ECO-2)

• Air Filter (Unwoven) - 5,000 hours

Accessories Supplied

• Accessories Supplied - Power cord - EU model: 1 x 1.8 m EU cord / US model: 1 x 1.8 m US cord, 1 x 2 m computer cable, 1 x IR remote control unit, 2 x AA batteries, User’s manual CD (operating guide, network function, 1 x safety instructions, 1 x User’s manual (concise)

• Remote Control with Batteries - HL03033

Optional Accessories

• Replacement lamp - DT01481
