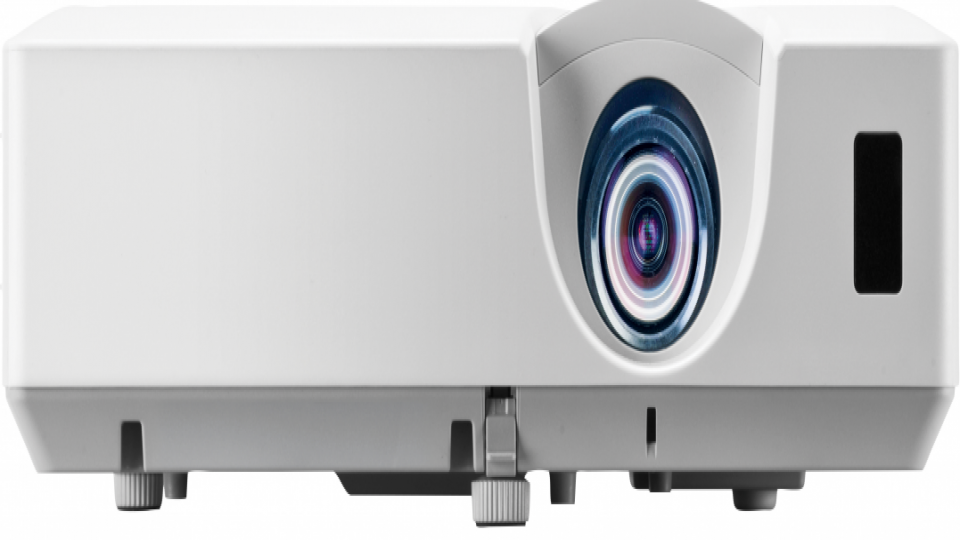

CP-X3042WN

Optical

• LCD Panel - 0.63 inch 3LCD Panel

• Resolution - XGA (1024x768)

• Brightness - 3200 ANSI Lumens (Normal), 2210 ANSI Lumens (ECO-2)

• Contrast Ratio - 10,000:1

• Lens - Manual Zoom x1.2, Manual Focus

• Lamp Life - 5,000 hours (Normal), 10,000 hours (ECO-2)

• Lamp Wattage - 225W

• Distance to width ratio - 1.5 (Wide), 1.8 (Tele)

• Diagonal display size - 30 inches-300 inches, (60 inches at 1.8 m, wide)

• Number of colours - 16.7 million

Compatibility

• Computer compatibility - IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"

• Composite - NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• Component Video - 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

• HDMI - 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

• Plug & Play - DDC2B (VESA) for Computer in1, DDC2B (VESA) for HDMI1, HDMI2/MHL

Features

• Digital Keystone Correction - Horizontal & Vertical ± 30 degrees

• Picture Adjustments - (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard,Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Daytime, Photo)

• Advanced Features - Perfect Fit (4 corners and 4 sides), Accentualizer, HDCR, Audio pass through Audio sound mixing (MIC input and another audio signal input), Audio ports assign, Audio out (standby) and Monitor out / selectable source with MENU, Resolution setting,Source naming (in English), Security Lock ,PIN Security Lock, MyScreen Password Lock, Transition Detector, My Text, Password Lock, Key Lock (Key pad, Remote Control), Stand-by Audio, Audio sound mixing

Network

• AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling, Crestron RoomView® (Not accessible through the wireless adapter), Displaying text data transferred via network, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, Network Presentation (PC still picture transfer), Frame rate (practical) is under 12fps (640x480 movie), PJLink TM, Projector Management via SNMP"

• OSD Languages - 33 Languages

Connections

• Digital input - HDMI/MHL x1, HDMI x1 (Supporting HDCP decoding)

• Analog Input - 15 pin D-Sub shrink x1 (shared with analog component video input), Analog Computer 2 15 pin D-Sub shrink x1 (shared with analog component video input and MONITOR OUT), RCA jack x1

• Monitor Output - 15 pin D-Sub shrink x1 (shared with COMPUTER IN 2 and analog component video input)

• Audio Input - 3.5 mm stereo mini jack x2, RCA jack(L, R) x1

• Audio Output - 3.5 mm stereo mini jack x1

• Control - 1 x 9-pin D-sub for RS-232C

• USB - USB type A x2 Used for PC-less presentation or wireless network, Used for optional wireless pen tablet TB-1, USB type B x1 Used for Remote control mouse or PC screen display

• Wireless LAN (Adapter not included) / Wired LAN - USB type-A / RJ45

Power

• Power Supply - AC 100~120 / 200~240V, 50 / 60Hz

• Power Consumption/Standby - AC 100 - 120 V / AC 220 - 240 V (50/60 Hz), Current consumption 3.4 A / 1.7 A, Less than 0.5 W (@ saving mode)

Physical

• Dimensions (W X H X D) - 320 x 85 x 245 mm

• Weight - 3.099 kg

• Noise Level - 37 db Normal, 29 db Eco

• Air Filter - 5,000 hours is the default, Unwoven filter

Accessories Supplied

• Accessories Supplied - Power cord EU model: Euro cord (1.8 m) x1 / US model: US cord (1.8m), Computer Cable (2 m) x1, IR Remote Control Unit x1, 'AA' Batteries x2, Lens cover x 1, Adapter Cover x1, Security Label x1, Application CD x1, User’s Manual CD (Operating Guide, Network Function, Safety Instructions, User’s Manual (Concise) x 1

Optional Accessories

• Replacement lamp - DT01481

• Filter - UX38841

• USB wireless adapter - USB-WL-11N
